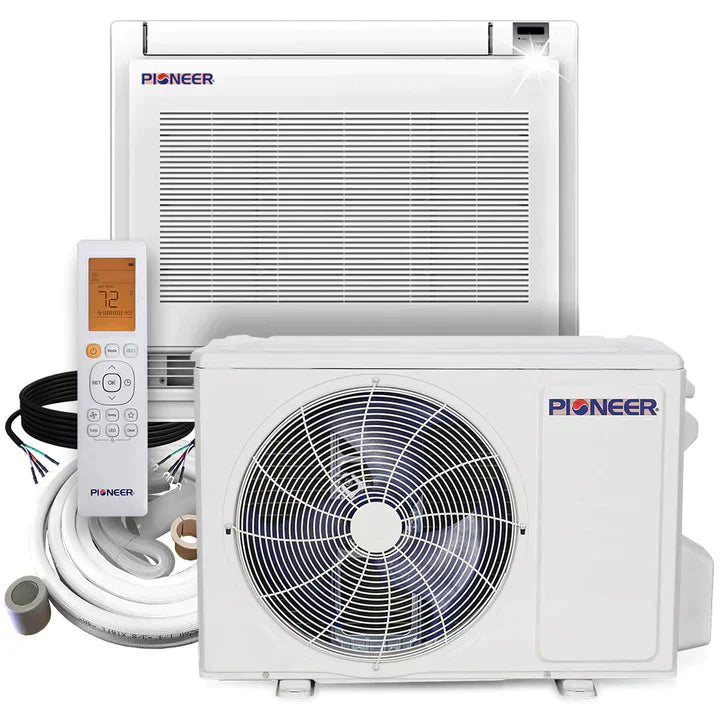

12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump K920

These mini split inverter ductless air conditioning and heating systems have ultra-quiet operation and superior efficiency. Our floor-mount mini splits are the perfect equipment for any cooling or heating application, using a single ductless indoor unit. All of our floor mini split options include an easy installation kit with a configurable length line set and various other accessories. Our floor-mount mini splits are made with high-quality materials and great attention to detail, which ensures that your unit will get the job done. Pioneer Mini Split鈥檚 floor-mount ductless mini splits are easy and convenient to install; our floor mini splits include an indoor unit, outdoor unit, wireless remote controls, manufacturer warranty, and more. Check out our selection of floor-mounted split system units today!

Features

• Ultra High Efficiency聽Inverter++ floor console聽split heat pump system
• Cooling capacity:聽12,000 BTU/H聽with聽21.5 SEER/13 EER聽efficiency
• Heating capacity:聽12,000 BTU/H聽with聽10.0 HSPF/3.52 COP聽efficiency
• Voltage:聽208~230 V, 60 Hertz, 1 Ph
• Floor Console聽Air Conditioning &聽Heating System
• Variable Speed聽DC Inverter聽Operation Mode
• Customizable length聽copper line set with flare connections
• Energy-Star聽Certified
• AHRI Estimated Annual Operating Costs:
• Cooling:聽$74.00
• Heating:聽$254.00
• Front Desk Control.聽With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Refrigerant聽Leakage Detect.聽Indoor unit shows error code聽'EC' and stops automatically聽when refrigerant leakage is聽detected. This protects the聽compressor from high聽temperature damage due to聽refrigerant leakage.

• Anti-cold Air Function.聽Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13掳F.
• Follow Me.聽Temperature sensor built in聽the remote controller will聽sense it鈥檚 surrounding聽temperature. The unit will聽adjust the room temperature聽more accurately to give you聽comfort.

• Wired Controller. Compared with infrared聽remote controller, wired聽controller can be fixed on the聽wall and makes air conditioner聽control more convenient.
• Remote in Engineer Mode
• Central Control Management.聽The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of聽3.90 Ft.

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• 33 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Installation Manual
• User鈥檚 Manual
• Manufacturer Warranty

Performance Data

Condenser

Air Handler

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• AHRI Certificate
• Submittal Sheet
